CNC Milling of a Ductile Iron Brake Adapter Assembly

Highlights of this Precision CNC Machined Project

Product Description

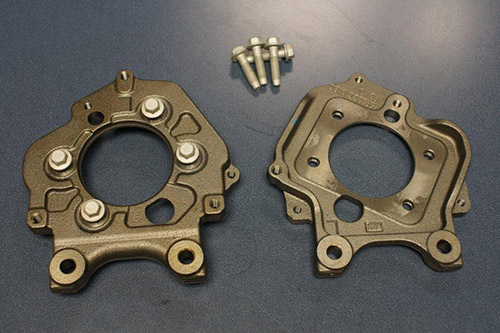

Ductile Iron Brake Adapter Assembly

Precision CNC Machining Capabilities Applied/Processes

Primary:
CNC Milling
Drilling
Boring
Taping
Straddle Milling
Secondary:
Assembly

  • Four (4) Bolts
Equipment Used to Manufacture Part

Incoming conveyor
Robot load/unload
7 axis flex machine cell
Inspection gage
Automated bolt driver
Vision system
Pack out Robot/conveyor

Overall Part Dimensions

Length: 8.5″
Width: 8.5″
Height: 1.25″

Tightest Tolerances

┬▒ 0.002″

Material Used

D65-45-12 Ductile Iron

Material Finish

Machined

In process testing/inspection performed

Inspection of Threads and Bolt Presence
Functional Gage Checks

Industry for Use

Automotive Industry

Volume

90,000 pairs per year

Delivery Location

Michigan

Standards Met

Customer Specifications, 2D CAD Drawing

Product Name

Brake Adapter
